원래 장소: | 중국 |
브랜드 이름: | RealRun |
인증: | ISO9001, SGS, Rohs, Reach |
모델 번호: | PH2.0 * 2.0-2 * nT |
최소 주문 수량: | 교섭할 수 있습니다 |
---|---|
가격: | Negotiable |
포장 세부 사항: | CAP+Reel 테이프 패킹 / 튜브 포장 |
배달 시간: | 3~7workdays |
지불 조건: | L/C, T/T, 서부 동맹, Paypal |
공급 능력: | 100000pcs/day |
색: | 검정색 | 피치: | 2.0mm |
---|---|---|---|
플라스틱 고도: | 2.0mm | 단열 재료: | PA6T+30%Glass 섬유, UL94V-0 |
접촉: | 고급장교 | 접촉 도금: | 니켈에 금/주석 |
현재 등급: | 2.0A | (최대) 접촉 저항: | 30mΩ 맥스 |
절연 저항 (분): | 1000mΩ 분 | 온도 가공: | 10 초 동안 260C |
작동 온도: | -40℃에 +105℃ | ||
하이 라이트: | PA6T 12 Pin Pcb Connector,2.0mm Pitch 12 Pin Pcb Connector,Dual Row Smt Pin Header |
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

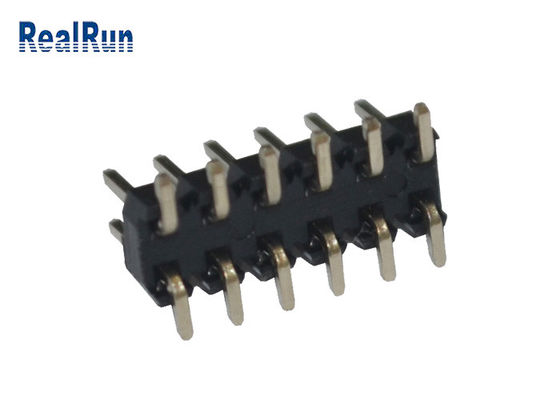

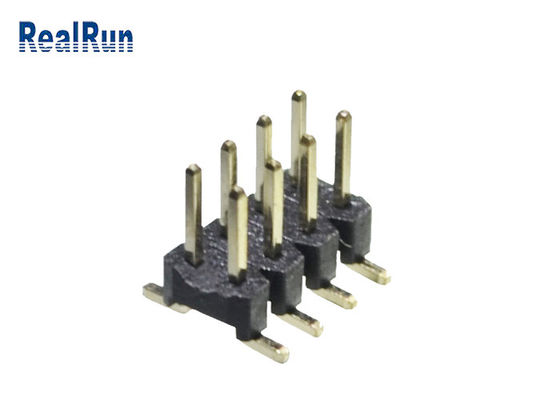

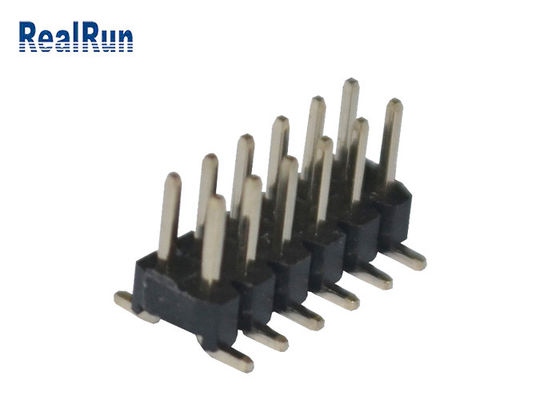

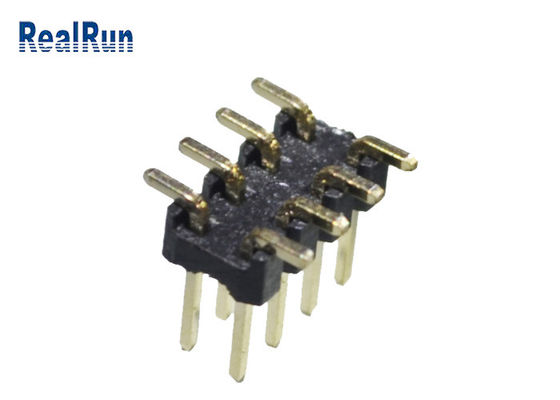

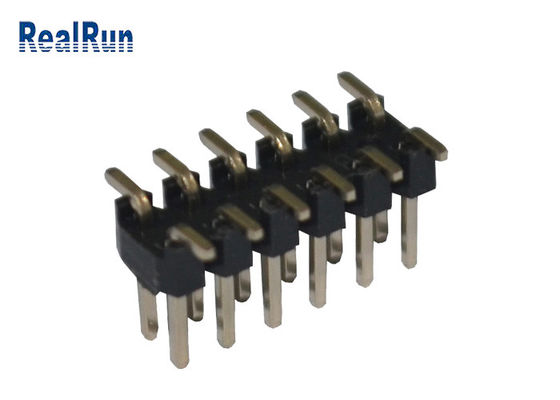

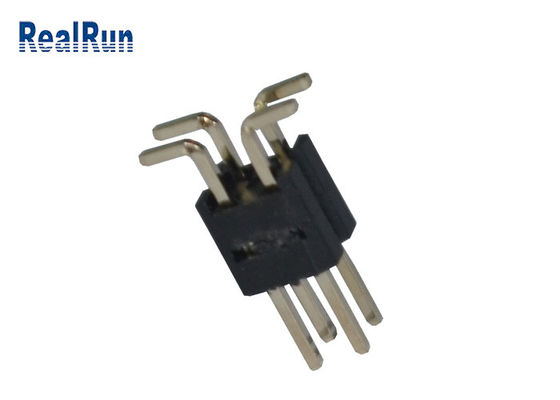

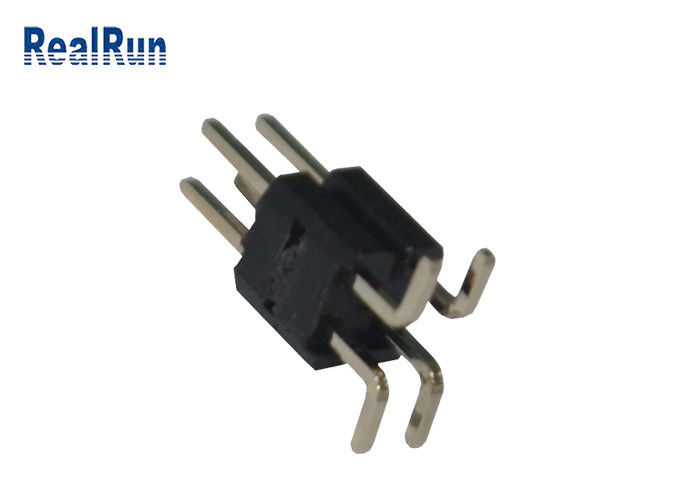

black 2.0mm pitch 2 4 6 8 10 12 pin pcb connector dual row smt type pin header
Product features: Wide range of uses, environmental protection, high temperature resistance, fire resistance, oxidation resistance.
Product material: PA6T/PA9T / PBT / brass or phosphor bronze insulation material: Plastic UL 94V-0.
Scope of application: Pin header are widely used in MP3,MP4,PDA, monitors, computers, computer motherboards, mobile storage disks, safety products, electricity meters, card readers, interphones, wireless phones, mobile phones, program-controlled switches, electronic toys, household appliances, etc. Provide the most reliable connection for board-to-board and line-to-board.
Name | Pin Header Connector/PCB Connector |
Pitch | 2.0mm |
Plastic Height | 2.0mm |
Type | SMT Type |
Insulator Color | Black/Grey |
Insulator Flammability | PA6T+30%Glass Fiber, UL 94V-0 |
Current Rating | 2.0A |
Contact Resistance(max) | 30m ohm |
Insulation Resistance(min) | 1000M ohm |
Contact materials | Brass |
Contact Plating | Gold/Tin over Nickel |
Operation Temperature | -40℃ to +105℃ |
Processing Temperature | 260℃ for 10 seconds |
Packing | Tray Packing |
OEM/ODM | Accepted |
Mounting Type | Through Hole |
Termination | Customization |
Contact Shape | Square Pin |
Pin Available | 2 Pins to 80 Pins |
Please feel free to contact us and we will send you the drawings you need.
